Expand the capacity with serial connection
Agree Health Care Suction bags are easily connected in a serial chain, giving the largest suction capacity in market.
The same suction bag for single and serial use
Disposable Serial tubing with a wide-angle connector is installed between suction bags. Reusable Vacuum tubing can be used to connect canisters to the vacuum source. Thanks to outstanding product compatibility, all Agree Health Care Suction bags can be used either in single or serial connections. The small number of product references allows for better stock control.

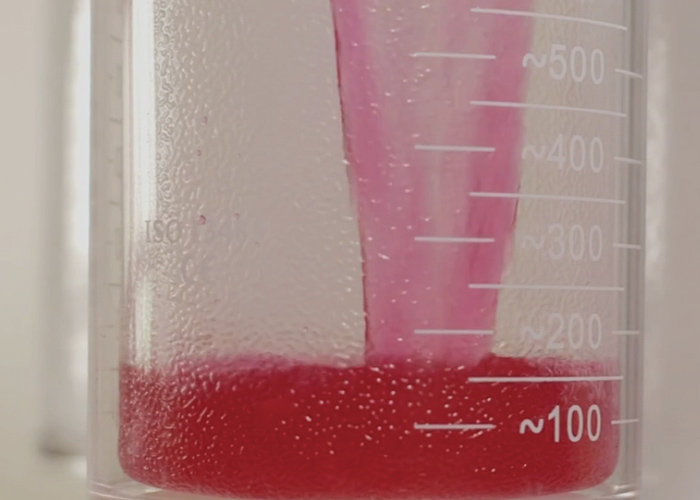

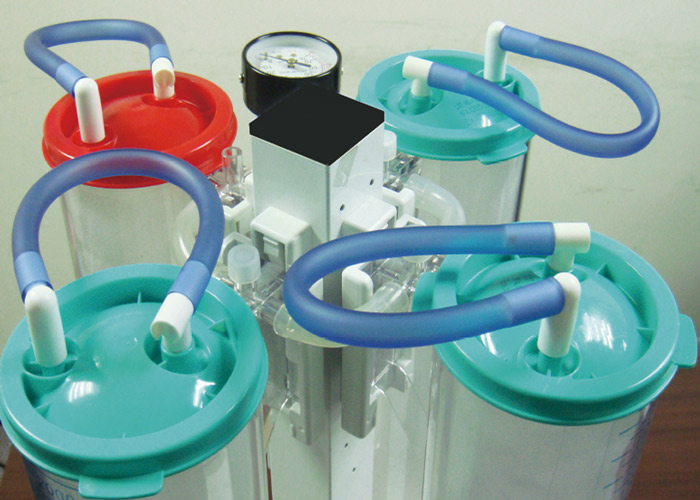

In a serial connection, you can connect up to 4 canisters into one chain. When using Agree Health Care Suction bags in series, the liquid flows into to the first bag. Once the first bag is full, the liquid automatically begins to flow into the next bag through the Serial tubing without any user intervention. When the last bag in the chain or series is full or when the procedure is over, the bags are plugged and disposed just like in normal use.
Instruction for use
Assembly

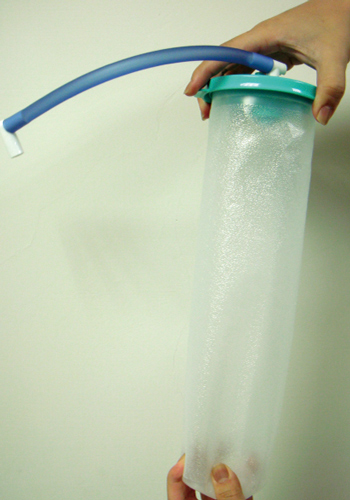

1. Twist and fully extend the liner.

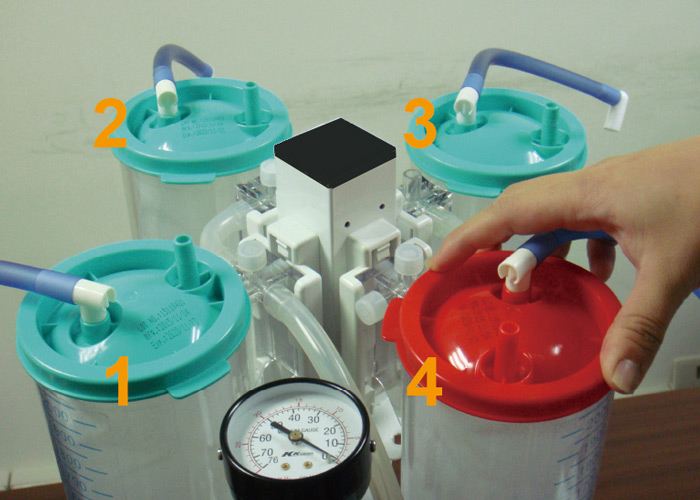

2. Insert the liner into the canister sequentially.

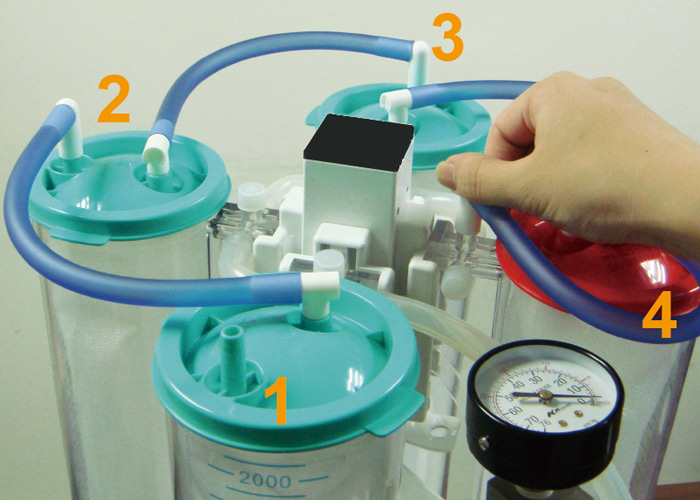

3. Connect the pre-attached liner tubing to the next liner connector sequentially.

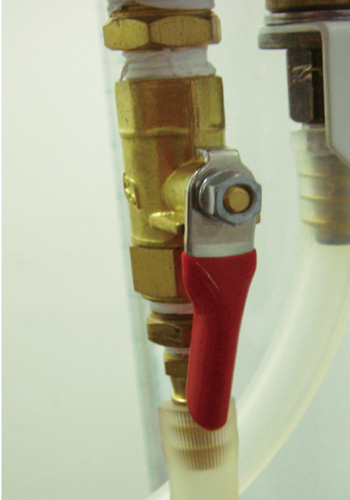

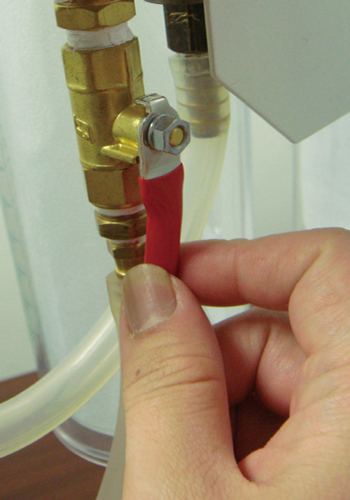

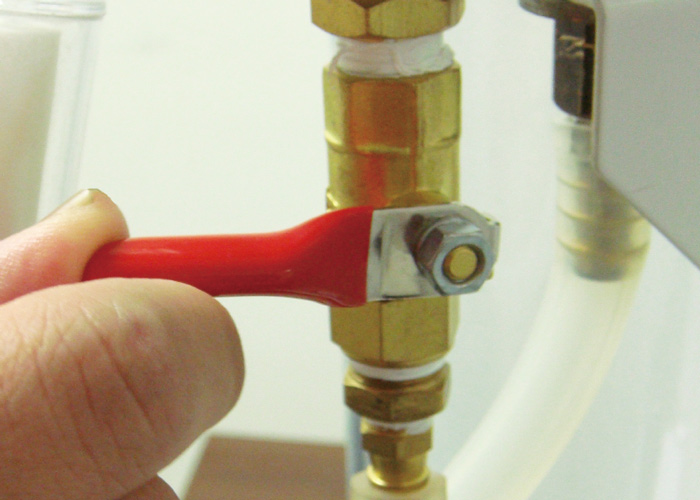

4. Turn the vacuum switch on.

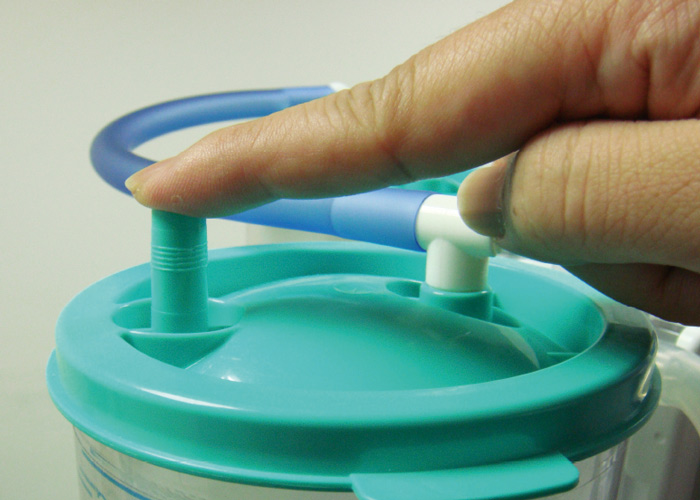

5. Use your finger to block the patient port. The liner will be naturally attracted by the negative pressure to the suction position.
6. Connect surgical tubing to patient port and proceed to suction.
Disassembly
